Guardian

Guardian Series

Ultra slim die-casting indoor LED Display

HIGH-END indoor fix installation solution

Fine pitch, high resoluton, HD 4k

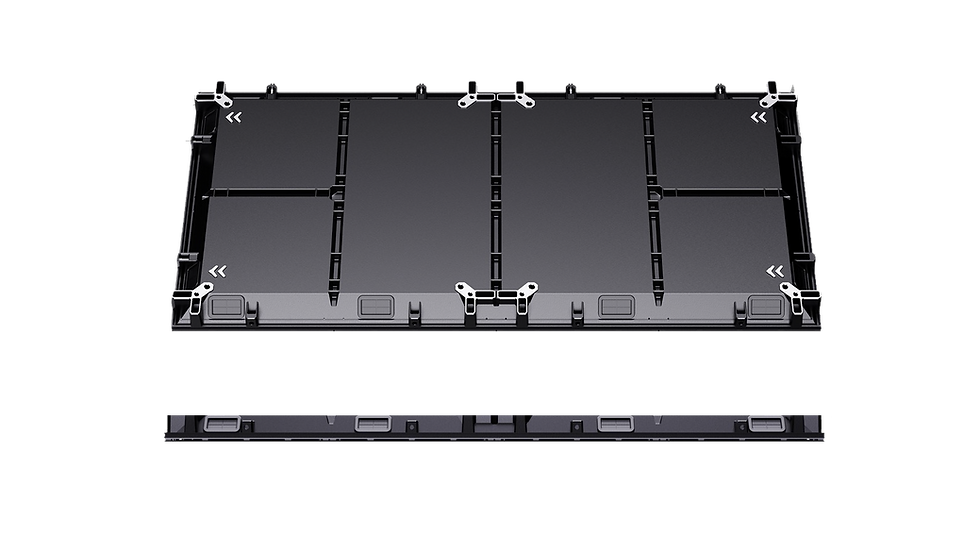

Die-casting aluminum panel

Pixel pitch: Indoor P1.5, P1.8, P2.6, P2.9,P3.9

The Guardian Series indoor LED display is a state-of-the-art indoor display solution designed for indoor applications needs high visual performance and user friendly installation.

This series is versatile for indoor application needs different resolution and screen sizes. It covers pixel pitches from 1.5mm to 4.8mm, but with the same panel frame platform. Without compromising on display quality, delivering vibrant, high-resolution images with excellent color accuracy and contrast.

With precise die-casting panel, Guardian Series brings seamless alignment and flatness. 100% full front service for the LED modules which helps the installation and maintenance easy.

Standard panel size is 500x1000mm, and with the assisted panel size in 250x500mm, 90 degree rotate available for all LED modules. All these featues can hell to create the screen height with 0.25m, 0.5m, 0.75m, very flexible for special size of the screen.

High Refresh Rate: Offers a refresh rate of up to 3840Hz for smooth and vivid picture quality.

Panel Drawings

Models

P1.56mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 320×640 pixels

P1.89mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 264×528 pixels

P2.5mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 192×384 pixels

P2.6mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 192×384 pixels

P2.9mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 168×336 pixels

P3.9mm

Panel size: 500x1000mm
Panel size: 19.69” x 39.37‘’
Resolution: 128×256 pixels

Pixel Pitch:

Pitch: 1.5mm, 1.8mm

Pitch: 2.6mm, 2.9mm, 3.9mm

Brightness:

Standard: 800 nits

High brightness: 1000 nits

Visual:

Standard refresh rate: 1920Hz

High refrsesh rate: 3840Hz

Grayscale: 16 bits

Mechanical:

Panel size: 500x1000mm

Panel size: 500x500mm

Panel size: 250x1000mm

LED module size: 250x250mm

Aluminum die-casting panel frame

High end visual:

Pitch range from 1.5mm to 3.9mm, with great uniformity of color and brightness

One platform-different pitches:

One type of panel frame can match all different pixel pitch of LED modules (size: 250x250mm)

Same receiving card, hub board, power supply

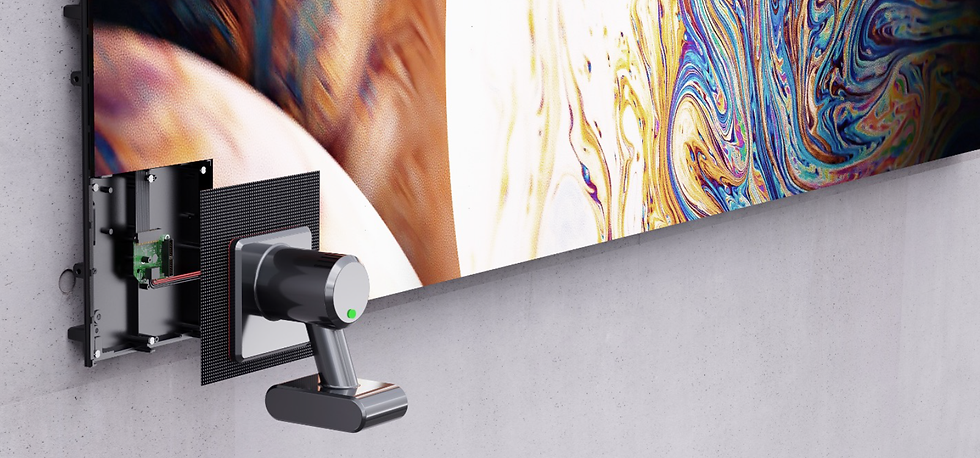

Magnetic front service:

Strong magnets guarantee the perfect seamless alignment between modules and panels

With the suction tool, LED modules can be easily take out from the front

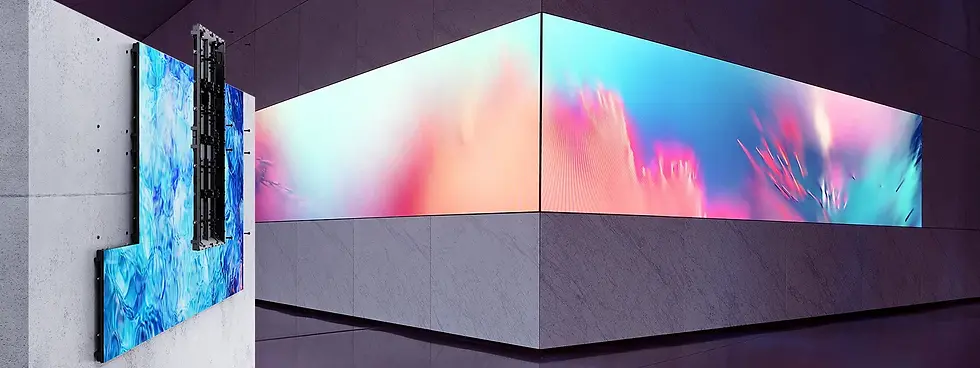

Direct wall mounted:

The ultra light weight and compact design of the panel frame, can be easily fixed on the wall with screw & installation plates, with perfect aligment

2 standard panel sizes, unlimited in visual sizes:

2 standard size of Brick Series
1- 500x1000mm / 19.69” x 39.37”
2- 250x500mm / 9.84” x 19.69”

90 degree rotate available

The assisted panel is able to extend on times of 250mm and to turn 90°
(module, hubs… stay same), super flexible to fit the remaining 250mm in a screen.
